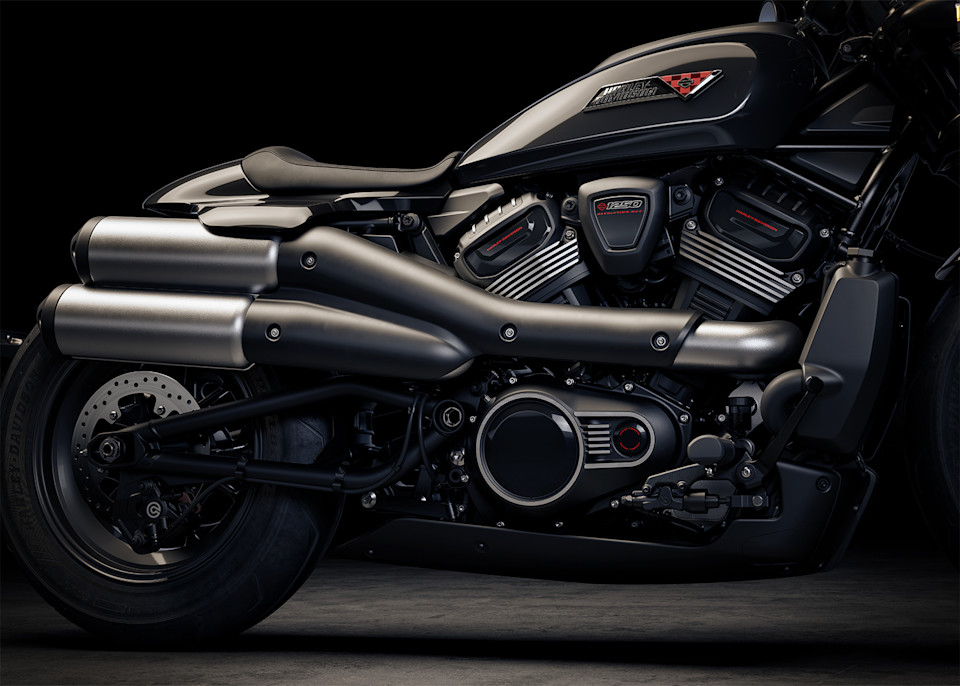

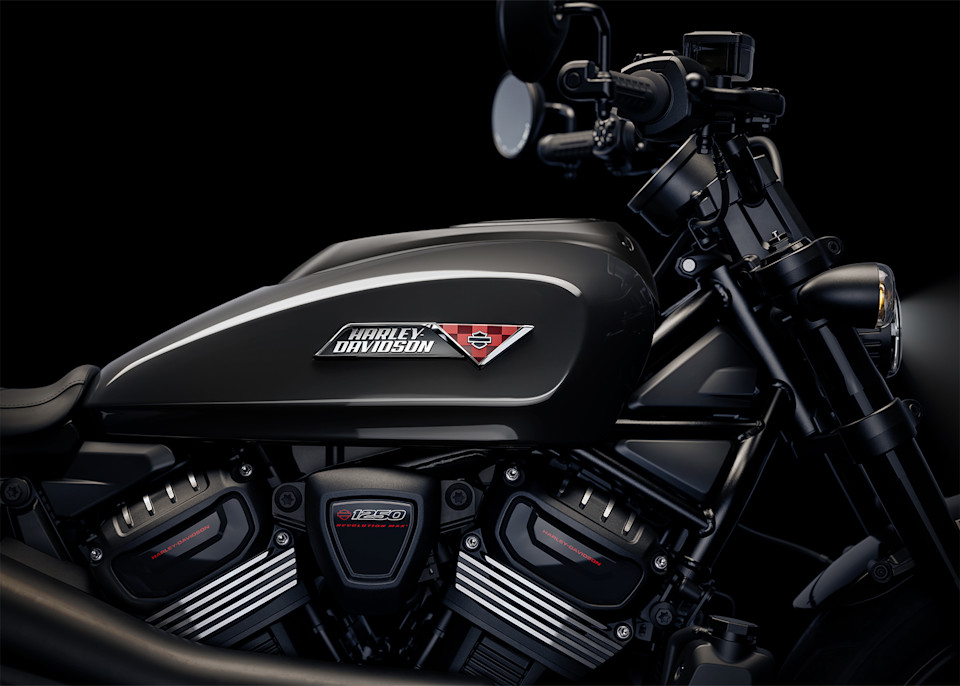

New highlighted cooling fins and blacked-out finishes sharpen the look while keeping true to the lines of one of Harley-Davidson’s most beloved classic V-Twins.

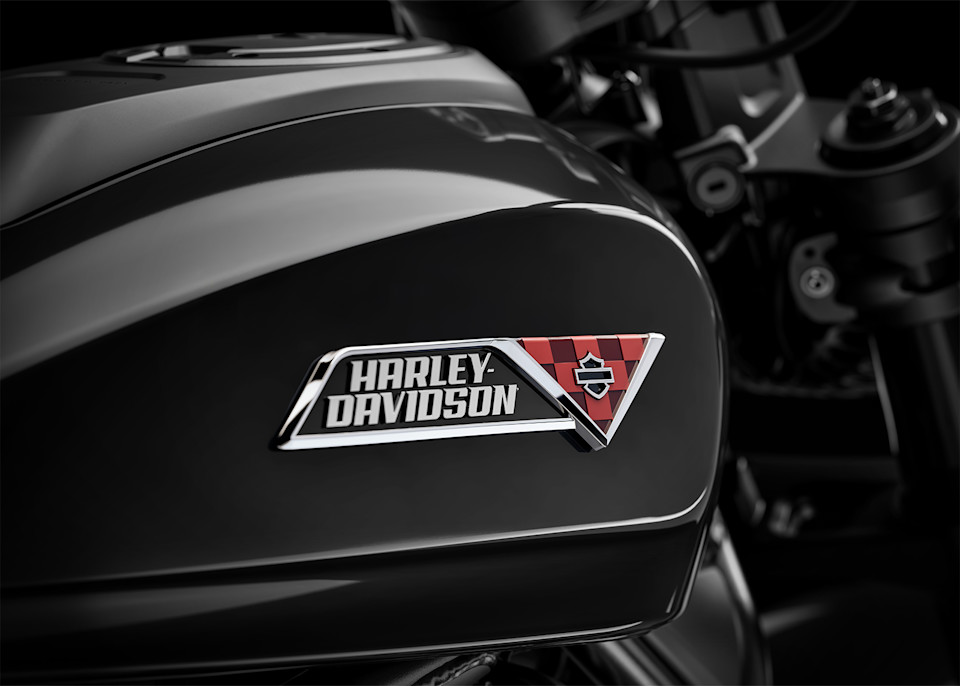

The tank medallion wears the Sportster’s history proudly, etched into a design tuned for speed, precision, and purpose built into every line.
Premium paint colorways include White Onyx Pearl, Dark Billiard Gray, Vivid Black, Blood Orange and Aurora Blue Denim. It’s the kind of paint you won’t want to spill gas on, that’s for sure.

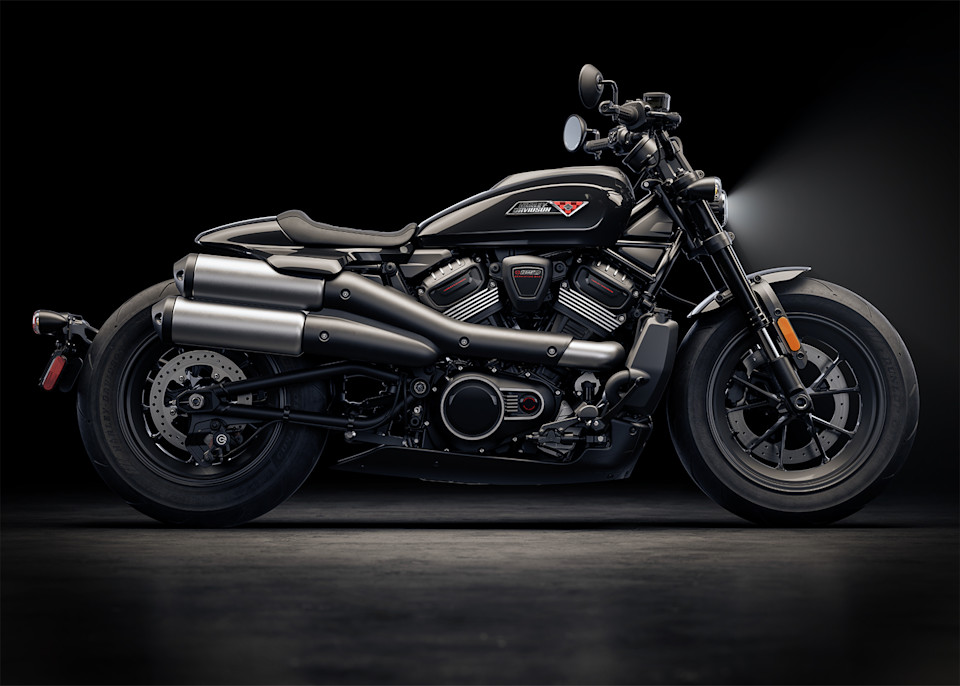

From its classic race-inspired tail to wheels that nod to the Forty-Eight model, the Sportster S carries its heritage like a badge of honor and backs it up with a stance built for the kind of riding that makes history all over again.

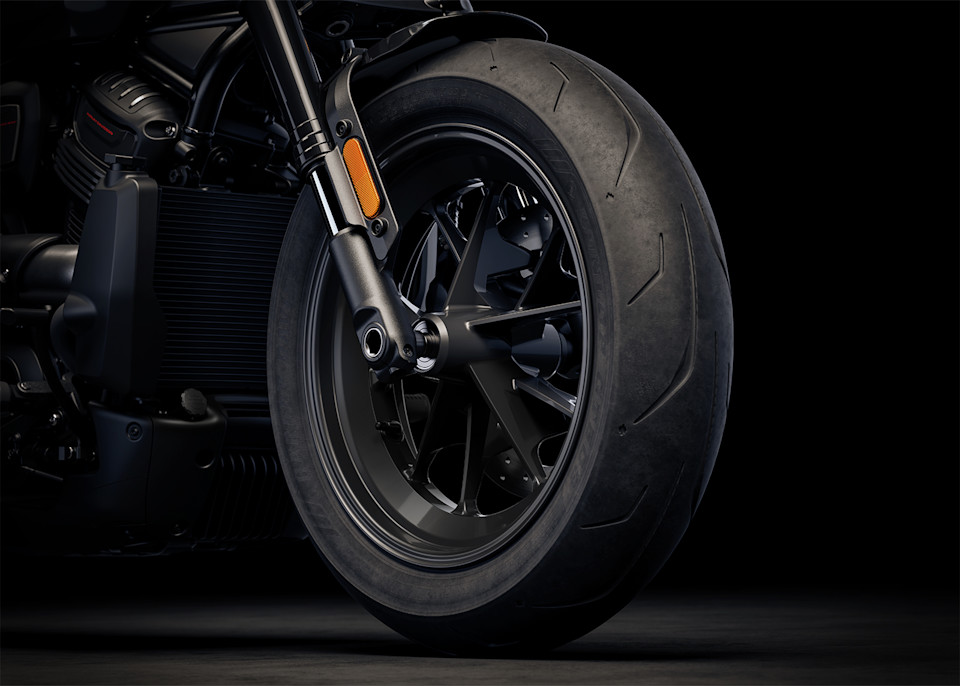

The wide front tire gives the Sportster S its aggressive stance and plants more rubber on the road for extra grip whether you’re carving through traffic or setting the tone on the highway.

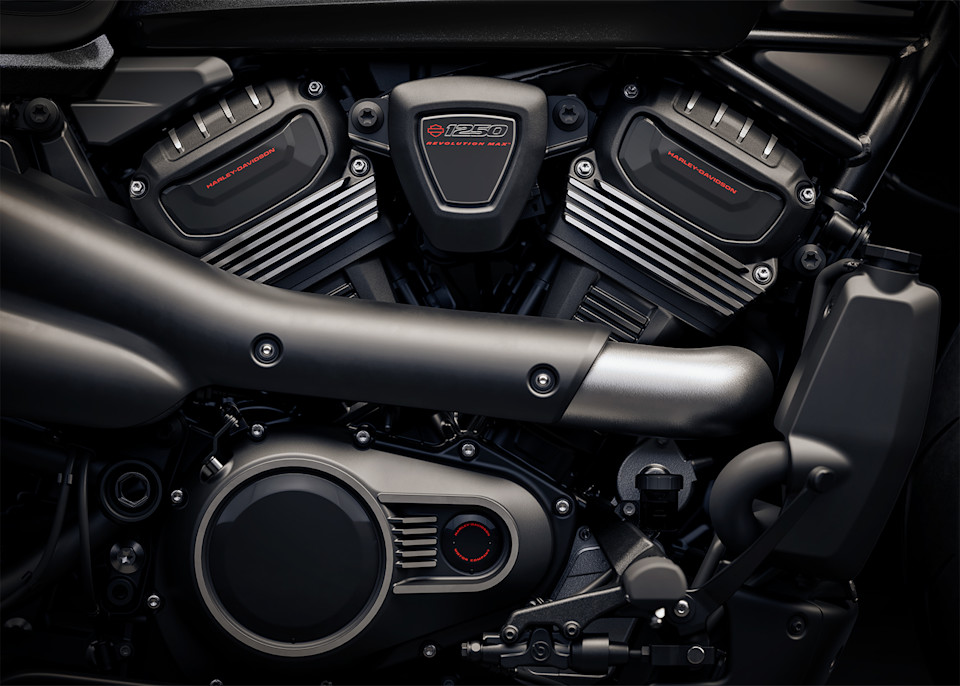

The liquid-cooled 1250T puts out 121 horsepower with torque on tap, ready the moment you roll on.

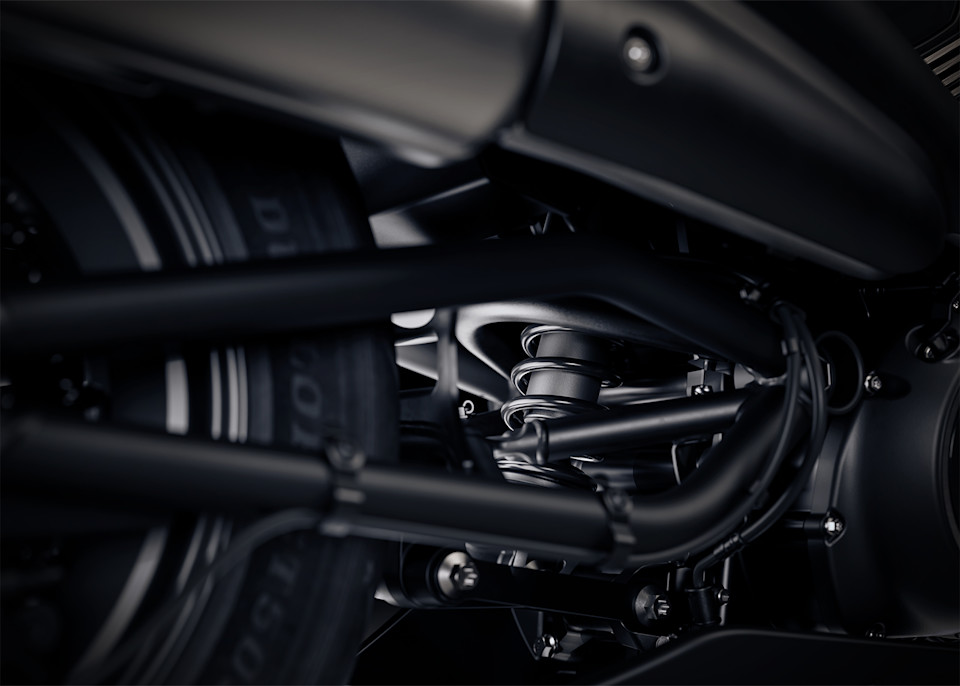

With 88.9 mm of travel out back, the Sportster S shrugs off rough streets and stays planted where and when you need it, giving you more comfort when you’re cruising and when you’re charging.

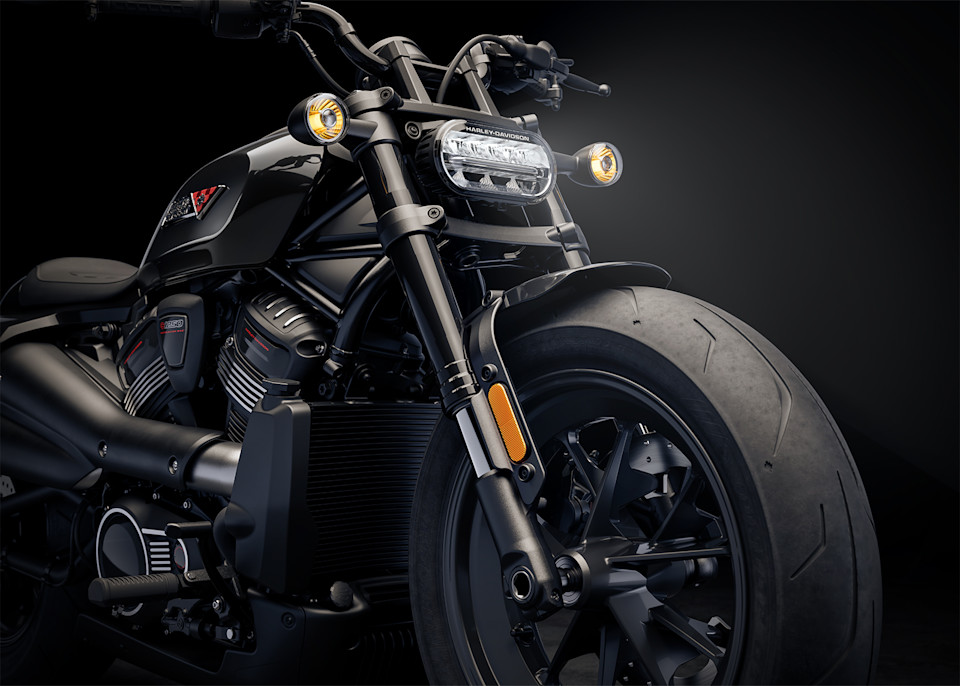

Re-tuned front forks work with the upgraded rear suspension to keep the Sportster S razor-sharp in the corners and steady everywhere else.

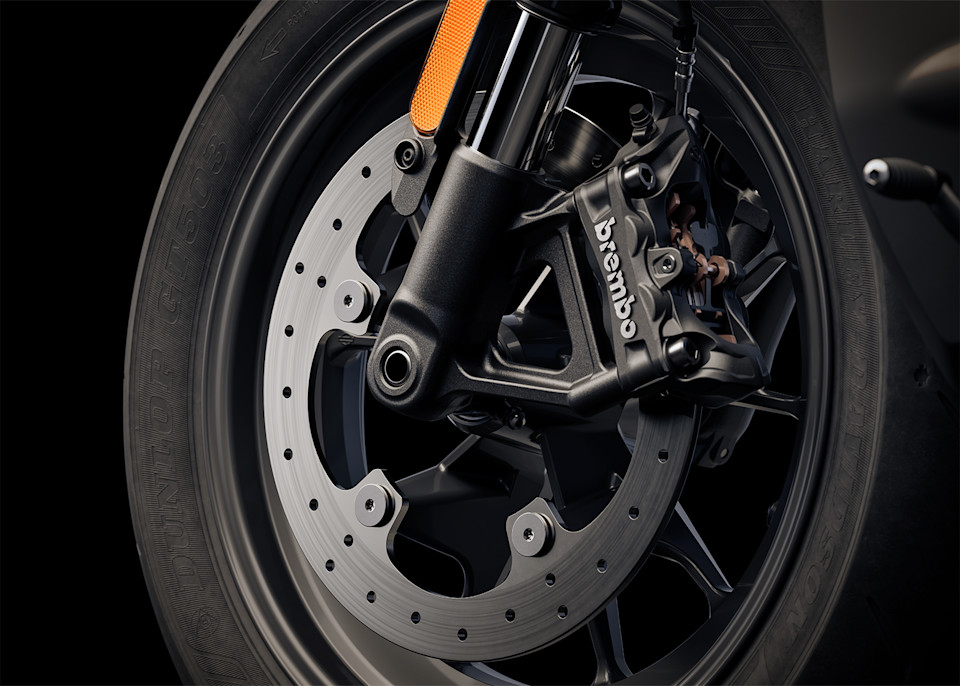

The radial-mount Brembo up front delivers the kind of precise, predictable stopping power you want when you’re pushing harder, braking later, and aiming for the next corner. Its sharp-edged design looks just as aggressive as it feels.

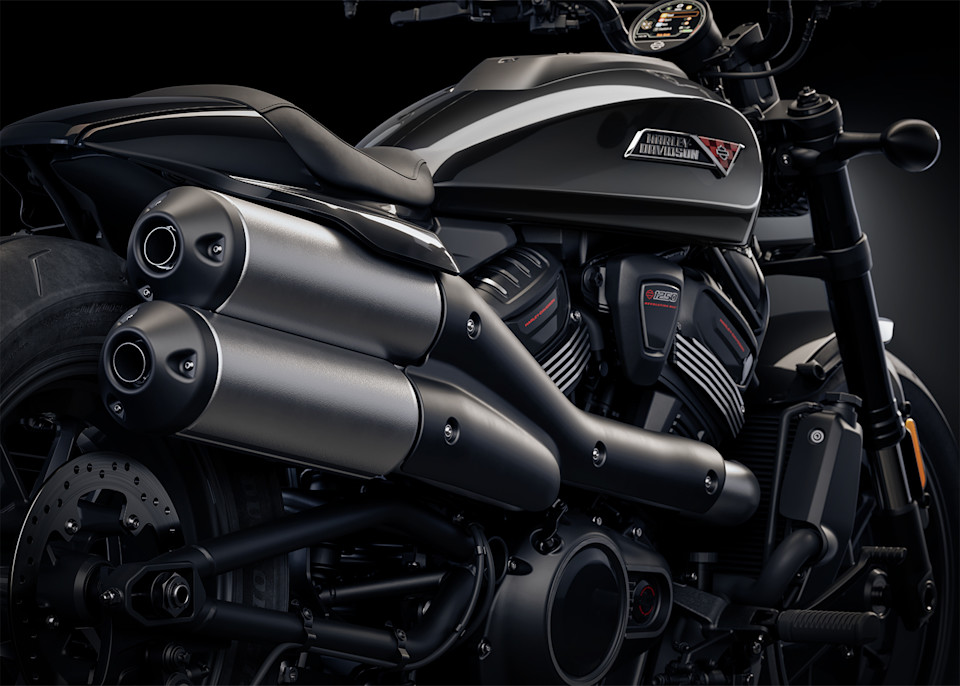

Inspired by flat-track racers, the high-mount 2-1-2 exhaust tucks in tight for aggressive cornering, and fires off a deep, commanding note built for the paddock, not the parkway.

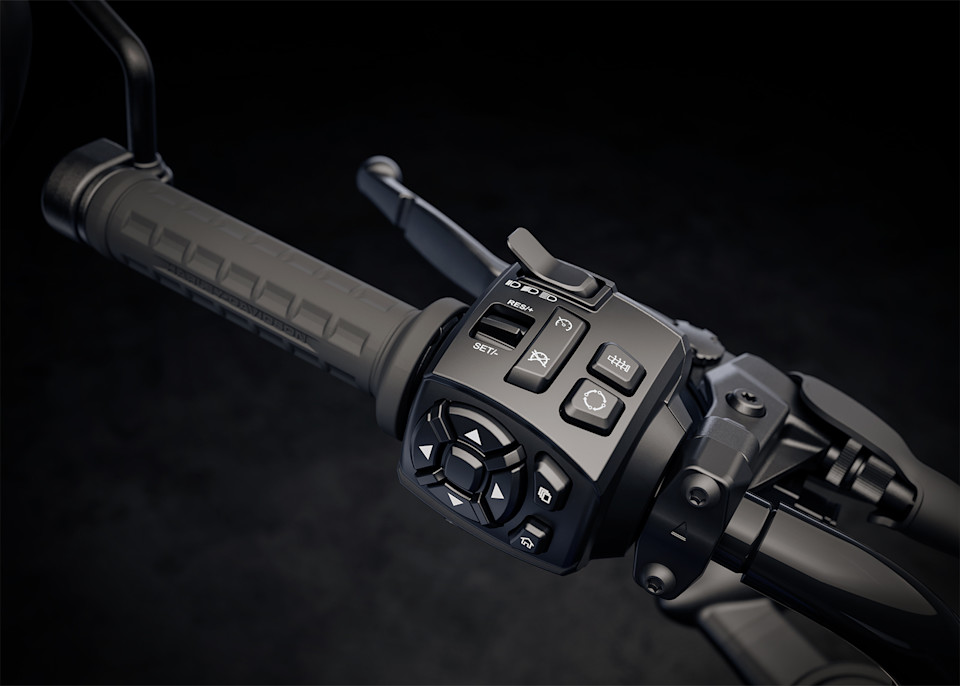

Cornering traction control and ABS keep the rubber hooked when you lean. Ride modes let you flip between Rain, Road, and Sport, or lock in a custom setup that fits your style. Out on the interstate, set cruise control and let the bike carry the miles for you.

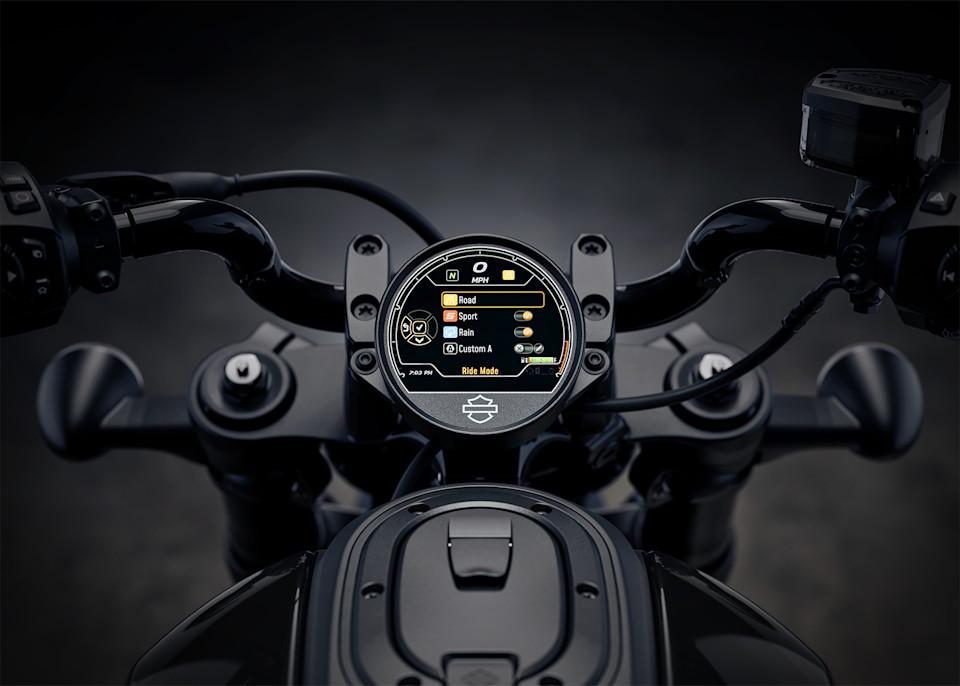

The round 102 mm TFT serves up maps, audio, and bike data in one clean view, ready the second you glance down and gone the second you look back up.
| BILLIARD GRAY | 645,000 THB |
|---|---|
| VIVID BLACK | 651,000 THB |
| COLOR | 652,000 THB |
| PREMIUM COLOR | 653,000 THB |
| Engine | Revolution™ Max 1250T |
|---|---|
| Bore | 105 mm |
| Stroke | 72.3 mm |
| Displacement | 1,252 cc |
| COMPRESSION RATIO | 12.0:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-into-1-into-2; catalyst in muffler |
| Length | 2,270 mm |
|---|---|
| Width | 840 mm |
| SEAT HEIGHT, UNLADEN | 765 mm |
| GROUND CLEARANCE | 90 mm |
| RAKE | 30 |
| TRAIL | 148 mm |
| WHEELBASE | 1,520 mm |
| TIRE, TYPE | Dunlop™ Harley-Davidson Series, radial |
| TIRES, FRONT SPECIFICATION | 160/70R17 73V |
| TIRES, REAR SPECIFICATION | 180/70R16 77V |
| FUEL CAPACITY | 11.7 l |
| OIL CAPACITY (W/FILTER) | 4.5 l |
| WEIGHT, IN RUNNING ORDER | 228 kg |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 125 Nm |
| Engine Torque (rpm) | 6,000 |
| HORSEPOWER | 121 HP / 90 kW @ 7500 rpm |
| Lean Angle, Right (deg.) | 35 |
| Lean Angle, Left (deg.) | 35 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 5.1 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 126 g/km CO2 |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 12.21 |
| Gear Ratios (overall) 2nd | 9.022 |
| Gear Ratios (overall) 3rd | 6.994 |
| Gear Ratios (overall) 4th | 5.641 |
| Gear Ratios (overall) 5th | 4.731 |
| Gear Ratios (overall) 6th | 4.131 |
| FRONT FORK | 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps. |
|---|---|
| REAR SHOCKS | Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability |
| Wheels, Front Type | Aluminum cast, satin black |
| Wheels, Rear Type | Aluminum cast, satin black |
| BRAKES, CALIPER TYPE | Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
| BRAKES, ROTOR TYPE | Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor |
| LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
|---|---|
| Gauges | 102 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| SCREEN SIZE | 102 mm |
|---|---|
| TYPE | Color TFT |
| HEADSET SPECIFICATION (IF EQUIPPED) | Bluetooth |
| LANGUAGES | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE – VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
| RIDER/PASSENGER INTERCOM | Headset function only |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
| USB | Charging and Instrument update, USB-C, 5V, 3A |
| BLUETOOTH | Phone/Media Supported |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| Wheel Lift Mitigation | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
| ENHANCED LIFT MITIGATION | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
